Fits: Ford Ranger Raptor, rear axle (the listing also describes it as the DBA 2024+ Ford Ranger rear rotor).
What this is

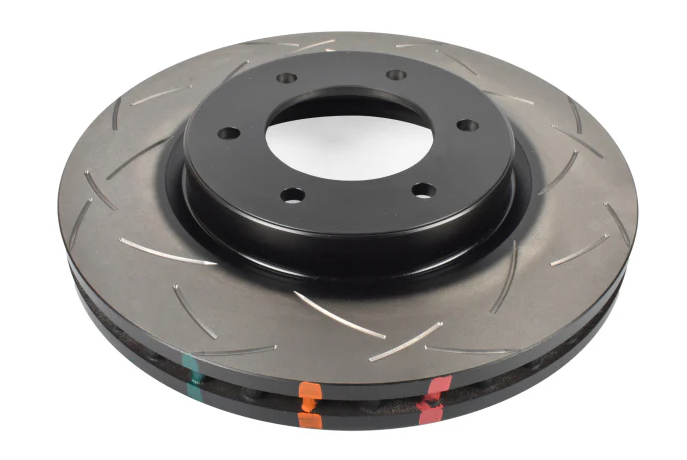

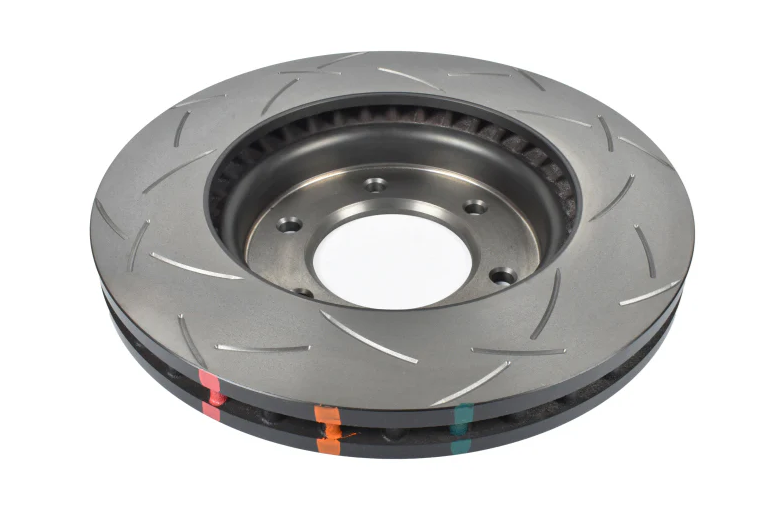

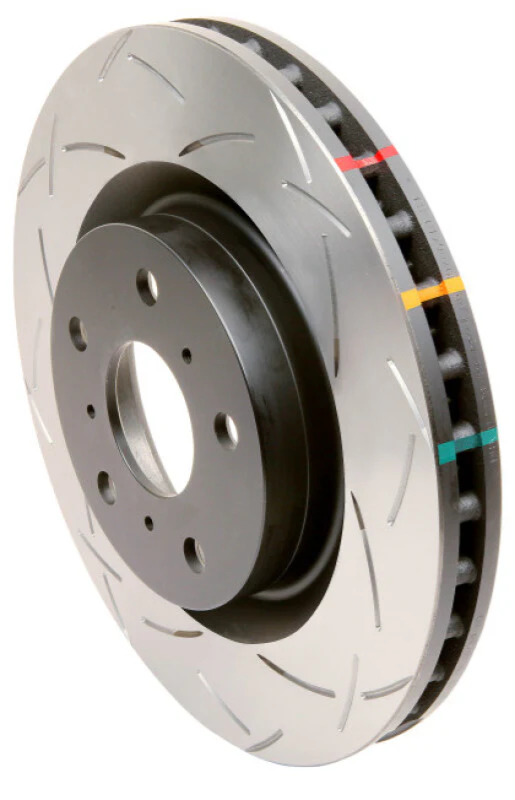

A DBA 4000 Series T3 slotted rear brake rotor, part number DBA43162S. It is a one-piece rotor that bolts on in place of the factory rear rotor. DBA recommends the 4000 Series T3 for high-performance driving and heavy off-road use. Sold individually; a truck needs two, one per side.
Design
- Cast from high-carbon alloyed iron with thermal stability profiling
- T3 slots: DBA's bi-directional slot pattern, which gives pad dust and gases more places to escape
- Kangaroo Paw ventilation: rows of diamond and teardrop pillars inside the vent, which DBA says add surface area and improve cooling over straight vanes
- Anti-rust paint on the non-friction areas
- Thermographic paint that changes colour at set temperatures, so you can see how hot the rotor has run
| Specification (DBA) | Value |
|---|---|
| Axle | Rear |
| Outer diameter | 332.5 mm |
| Overall height | 80.6 mm |
| Disc thickness / minimum thickness | 24 mm / 22 mm |
| Centring diameter | 93 mm |
| Stud holes / PCD | 6 / 139.7 mm |
What is in the box
- One rear rotor
Warranty
DBA warranty: 12 months, 20,000 km or 12,000 miles.
FAQ
Is this one rotor or a pair?
One rotor. Order two for the rear axle.
What do the coloured stripes on the edge do?
They are DBA's thermographic paint. Each stripe changes colour at a set temperature, which shows how hot the rotor has been.
Is there a matching front rotor?
Yes: the DBA 4000 Series T3 front rotor DBA43160S. For pads, see the DBA front pads DB2379SP.
